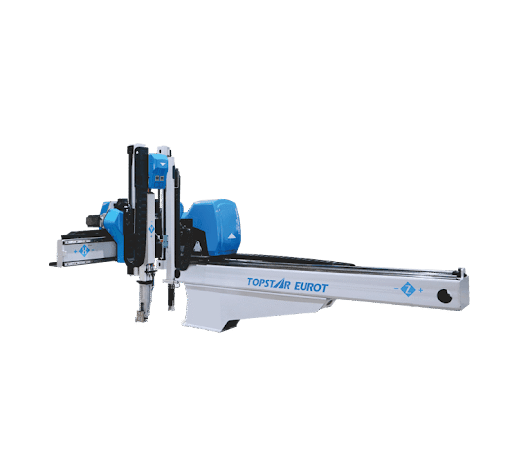

As the injection molding industry continues to modernize, automation plays an increasingly important role in improving production efficiency. However, like any high-tech machinery, they occasionally experience performance issues. Knowing how to quickly identify and resolve these issues is key to keeping production lines running smoothly and efficiently. In this article, we will explore practical and effective troubleshooting strategies for injection molding robots. Each section will introduce common robot problems and their solutions to help manufacturers and operators improve reliability, reduce downtime and maximize the value of their investment.
Recognize Common Problems with Injection Molding Robots
Before embarking on a technical solution, it is essential to identify early warning signs that the injection molding robot may be faulty. Most problems start in subtle ways – slight motion delays, unusual sounds or inconsistent pick and place. These seemingly insignificant minor problems are often a harbinger of more significant problems, such as wear, improper calibration or communication errors with the injection molding machine. By training operators to detect these signs early, companies can avoid costly failures. Regular visual inspections, performance monitoring and software diagnostics should be part of daily work. Finding problems in the early warning stage can solve problems faster and more cost-effectively.
Solving Motion Errors in Injection Molding Robots
One of the most common troubleshooting challenges is motion errors. Injection molding robots rely on precise motion—whether it’s extracting molded parts or inserting inserts into molds. If an injection molding robot hesitates, jitters, or moves out of sync, it could be due to issues like misaligned encoders, faulty servo motors, or worn drive belts. To troubleshoot this, first check the robot’s programming settings to confirm that the speed and path are correct. Next, check the mechanical parts for debris or misalignment. The servo drive should be tested to ensure that the robot controller is receiving the signal. Lubrication of joints and shaft gears also plays a vital role in maintaining smooth motion. Regular maintenance and proper parameter adjustments can significantly reduce these motion-based interruptions and keep the robot arm operating accurately.
Troubleshooting End-of-End Tooling (EOAT) Failures
The end-of-end tooling (EOAT) is where the robot interacts directly with the product, such as a gripper, suction cup, sprue picker, or cutter. Failures here can result in damaged parts, extended cycle times, or even production interruptions. To troubleshoot EOAT issues, check the air supply pressure level to the pneumatic gripper. Low air pressure can result in a weak grip. Make sure there are no leaks or cracks in the air line. The suction cups should also be checked for dirt or wear, as even minor imperfections can reduce gripping force.
If the EOAT tool is not responding to commands, check the I/O configuration between the robot and the central controller. Sometimes, a faulty sensor or loose wiring can cause the tool to misfire. Replacing worn EOAT components and having spare tools on hand are smart precautions to ensure a smooth process.
Troubleshooting communication problems
Today, the injection molding robot is tightly integrated with innovative factory systems. They are in constant communication with injection molding machines, conveyors, vision systems, and central control centers. Once communication is interrupted, coordination is affected, resulting in errors or downtime. To troubleshoot communication problems, first check the status of the Ethernet or fieldbus connection. Loose cables, damaged connectors, or incorrectly configured IP addresses are often the culprits. Many robots are equipped with diagnostic LED indicators or software utilities that can help pinpoint communication problems.
Also, check the robot’s firmware and software versions. Outdated firmware can cause compatibility issues with newer machines or software platforms. If necessary, update the robot’s operating system or drivers to re-establish seamless communication. By standardizing communication protocols and checking for updates regularly, manufacturers can reduce the risk of the overall system slowing down due to disconnected robots.
Sensor-Related Troubleshooting
Sensors play a critical role in helping injection molding robots determine precisely where to move, when to pick up, and where to place. But over time, these sensors can become dirty, misaligned, or even fail altogether, resulting in inaccurate movements or missed parts.
When troubleshooting sensor-related issues, check for dust, oil, or residue on the optical or magnetic sensor. Wipe with a soft cloth and inspect for damage. Make sure the sensor is aligned correctly and securely mounted. Also verify the sensor signal using the controller or PLC diagnostics. If the signal is not reaching the robot’s “brain,” the sensor may need to be replaced or rewired.
Keeping Injection Molding Robots Running at Peak Performance
Injection molding robots have revolutionized modern manufacturing, providing unparalleled efficiency and consistency. But like all advanced systems, they require thoughtful maintenance and quick response when problems arise. By understanding how to identify problems early and applying targeted troubleshooting strategies, operators can significantly reduce downtime and protect the quality of their production.
